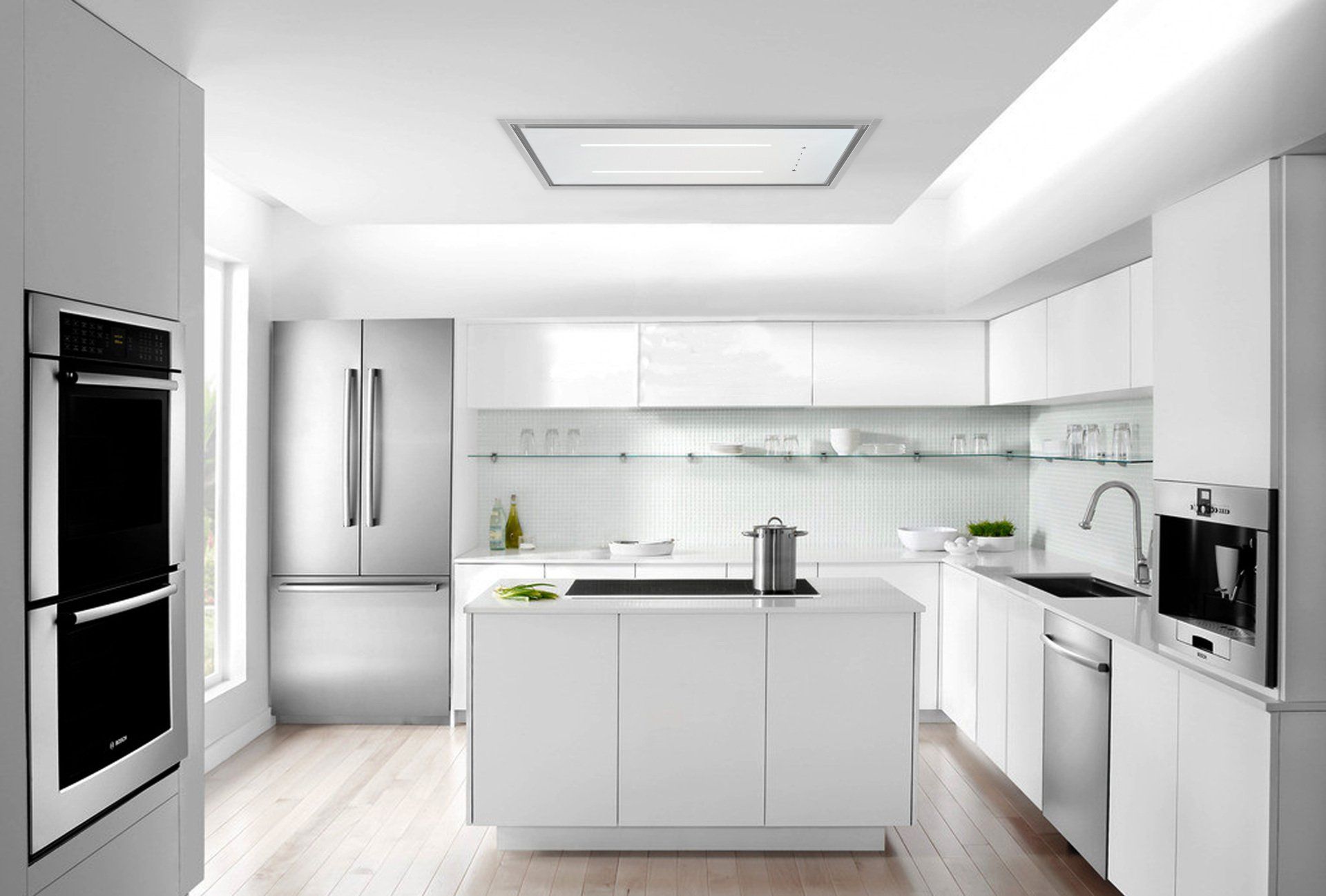

The bestselling Aria slimline ceiling hood has been updated to offer recirculation as well as standard ducted out.

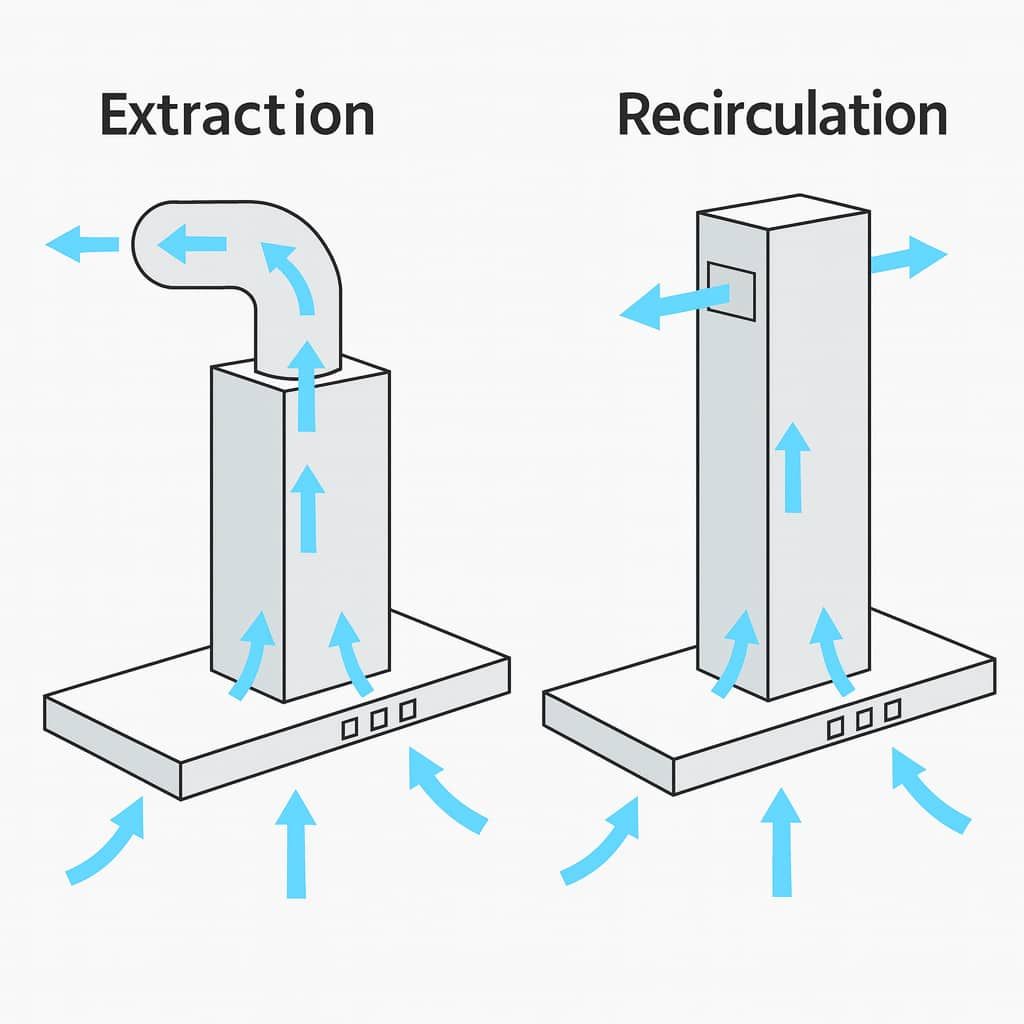

This is the only slimline recirculation small ceiling hood we know of that can be installed between joists in the existing ceiling line without the need to duct outside. Most recirculating hoods install below the ceiling line as they blow the cleaned air back into the kitchen from vents on the top of the hood. However, the Aria offers the ability to install flush to the ceiling line and duct back into the kitchen from a discrete ceiling vent.
During installation, you use the flexible 220 x 90 ducting tube and round adaptor to connect the exhaust of the hood to the discrete white ceiling vent. The easy-to-replace charcoal filters are installed behind the grease filters on the hood.
*The support beams on the diagram are a suggested installation method. You can use the clips to hang the hood on a baton across the joists.
The diagram shows this configuration only works if the joists are running the same way as the hob. If you are installing across the joists, then no ceiling hood will fit flush to your ceiling. Please contact us if you are unsure if our non-ducted ceiling hood is suitable for your hob.
Please refer to a tradesperson to double-check suitability for your installation.
The product will fit between 8″ (203m) and higher joists plus 1 sheet of 12.5mm plasterboard
203mm +12.5mm = 215.5 mm > height of product 207mm. In case of tight installations, a further board or ply can be added to the ceiling ( imagine like a picture frame around the hood) and finished to match the ceiling giving you the room needed in the void between joists.
Minimum Niche Dimensions for installation L 860mm W 280mm H 207mm
Overall Size L 900 x D 320mm x H 207mm
Motor rating 600m3/hr
Hood Extraction Rate 411.1m3/hr (EN 61591)
Maximum height above hob 1.6m
Noise 54 – 59dB
Ducted or recirculation
Weight 15.3kg
